» » » Bernardo UWF 110 servo universal milling machine
|
Bernardo UWF 110 servo universal milling machine |

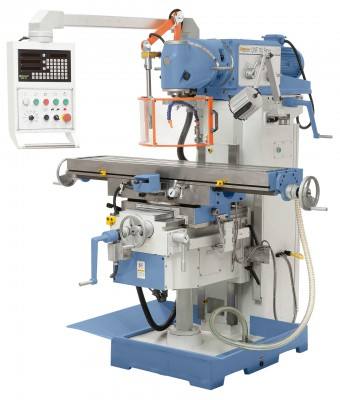

The UWF 110 Servo universal milling machine is designed for light to medium-heavy milling work. This machine, with its high variety and the ability to easily refit, is for small and medium-sized series in workshops. Especial features of this machine are the tiltable work table, the rectangular guiding in y- and z-axis and the servo drive for feeds and rapid feed in all axis.
Technische Spezifikationen
Table size
|
1270 x 300 mm
|
Spindle taper
|
ISO 40 mm
|
Spindle speed
|
(11) 45 - 1660 rpm
|
Travel longitudinal (x)
|
720 mm
|
Travel cross (y)
|
280 mm
|
Travel vertical (z)
|
400 mm
|
Distance spindle to table
|
60 - 460 mm
|
Distance spindle to column
|
95 - 575 mm
|
Table tiltable
|
-45° to +45°
|
Max. workpiece weight
|
250 kg
|
Feed range longitudinal / cross
|
(8) 30 - 830 mm/min
|
Feed range vertical
|
(8) 23 - 625 mm/min
|
Rapid feed x-, y- and z-axis
|
1000 / 1000 / 750 mm/min
|
T-slot (Quantity / Width / Distance)
|
3 / 14 mm / 80 mm
|
Main motor
|
3,0 kW
|
Servomotor (Torque / Output)
|
10 Nm / 1,5 kW
|
Coolant pump output
|
60 W
|
Coolant pump flow rate
|
12 l/min
|
Machine dimension (W x D x H)
|
1740 x 1860 x 1900 mm
|
Weight approx.
|
1350 kg
|
Features
- Large rectangular guide in the y- and z-axis guarantees an increase in stability
- 8 automatic table feeds and rapid feed in all axis, driven by servomotor
- Universal mill head system „Huron“ adjusts to various angles
- Ergonomically mounted switches on swivelling control panel
- Solid, grey cast iron machine construction eliminates vibrations
- Polished gears, in oil bath, guarantees smooth running
- Clearly arranged spindle speed control unit on machine arm
- Digital readout for x-, y- and z-axis come standard
- Surface treated table features T-slots
Standard accessories:
- 3-axis digital readout
- Drawbar M16
- LED machine light
- Power feed for x-, y- and z-axis
- Coolant device
- Counter bearing
- Long milling arbor ISO 40 / 27 mm
- Taper shell end mill holder ISO 40 / 27 mm
- Coolant tray
- Adjustable protective cover
- Central lubrication for x-, y- and z-axis
- Tools
Optional accessories:
- Hydraulic machine vise with swivel base PHV 130 (Art. no. 28-2120)
- Opening wider machine vise FJ 150 (Art. no. 28-2087)
- Mill chuck set ER 40, ISO 40, 3 - 25 mm, 16 pcs. (Art. no. 26-1011)
- Semi-universal dividing head BS-1 (Art. no. 27-1046)
- Horizontal and vertical rotary table HV 10 (Art. no. 27-1002)
- Deluxe clamping kit set 58 pcs., 14 mm, M 12 (Art. no. 28-1001)
- 28 pcs. standard steel parallel set (Art. no. 35-1020)
- 20 pcs. HSS TiN-coated end mills, 3 - 20 mm (Art. no. 42-1020)
- Boring head combo package diam. 75 mm, incl. boring bars (Art. no. 25-1020)
- 10 pcs. HSS TiN-coated roughing end mills, 6 - 25 mm (Art. no. 42-1016)
- Metric size taper shank drills MT 2/3, 9 pcs. - 14,5-30 mm, set B (Art. no. 41-1051)
- 75° face milling cutter diam. 80 mm (Art. no. 42-1085)
- Machine mount NE 120 (Art. no. 53-2011)
- Universal coolant fluid RK 12, 5 l canister (Art. no. 54-1206)
|
