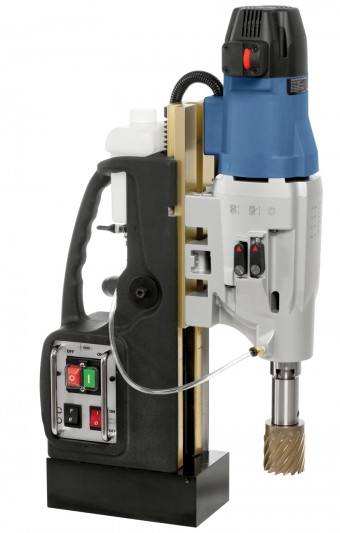

Bernardo magnetic drilling machine MD 1200/4
|
Technische Spezifikationen
Core drill max. Ø
|
120 mm
|
Core drill max. drill depth
|
50 mm
|
Twist drill max. Ø*
|
32 mm
|
Twist drill max. drill depth*
|
200 mm
|
Twist drill max. Ø**
|
16 mm
|
Twist drill max. drill depth**
|
110 mm
|
Thread cutting max.
|
M3 - M25
|
No load speed, stepless
|
35 - 120 / 70 - 220 U/min
80 - 250 / 140 - 450 U/min
|
Spindle taper
|
MT 3
|
Arbor welden shank
|
19 or 32 mm
|
Distance spindle to base max.
|
215 mm
|
Distance weldon shank / base max.
|
155 mm
|
Magnetic adhesion
|
32000 N
|
Dimension magnetic base (L x W x H)
|
210 x 115 x 70 mm
|
Motor power / Voltage
|
2,0 kW / 230 V
|
Machine dimensions (W x D x H)
|
400 x 250 x 670 mm
|
Weight approx.
|
28,3 kg
|
* with mounted MT-drill
** with mounted drill chuck
Features
- Automatic internal lubrication, coolant fluid goes straight to tip of core drill
- Complete with MT 3 taper for mounting of several tools (twist drills, countersinking bits, reamers, tapping chucks, keyhole saws etc.)
- Variable speed settings, consistent speed during workload guaranteed by electronic speed control
- Powerful, high torque drive motor features soft start and overload protection
- Extensive optional accessories widens the range of applications
- Complete with right and left turn, ideal for tapping
- Variable speed setting allows optimal adjustment of speed when core drilling, tapping, countersinking or reaming
- Tool holders are designed for core drills feat. Weldon shaft 19 or 32 mm
- Powerful electro magnet guarantees excellent magnetic force
Standard accessories:
- Safety chain
- Plastic box
- Coolant tank
- Protective cover
- Arbor for 19 mm weldon
- Arbor for 32 mm weldon
- Tools
- User manual
Optional accessories:
- Set of core drills HSS, 12 - 22 mm, drilling depth 25 mm, 6 pcs. (Art. no. 41-1100)
- Set of core drills HSS, 14 - 24 mm, drilling depth 25 mm, 6 pcs. (Art. no. 41-1101)
- Set of core drills HSS, 14 - 24 mm, drilling depth 50 mm, 6 pcs. (Art. no. 41-1102)
- 3 flute core drill set HSS, 6 - 13 mm, drilling depth 30 mm, 6 pcs. (Art. no. 41-1103)
- Power worker (Art. no. 51-1050)
- Drill chuck 1 - 16 mm / 5/8" (Art. no. 24-1078)
- Vacuum base (Art. no. 53-2132)
- Vacuum pump VP 140 (Art. no. 53-2130)
- Quick release arbor f. core drills (Art. no. 53-1060)
- Small range tapping chuck S M3 - M14 (Art. no. 53-1065)
- Clamp collet M3 (for S) (Art. no. 53-1066)
- Clamp collet M4 (for S) (Art. no. 53-1067)
- Clamp collet M5 (for S) (Art. no. 53-1068)
- Clamp collet M6 (for S) (Art. no. 53-1069)
- Clamp collet M8 (for S) (Art. no. 53-1070)
- Clamp collet M10 (for S) (Art. no. 53-1071)
- Clamp collet M12 (for S) (Art. no. 53-1072)
- Clamp collet M14 (for S) (Art. no. 53-1073)
- Large range tapping chuck L M8 - M24 (Art. no. 53-1080)
- Clamp collet M8 (for L) (Art. no. 53-1081)
- Clamp collet M10 (for L) (Art. no. 53-1082)
- Clamp collet M12 (for L) (Art. no. 53-1083)
- Clamp collet M14 (for L) (Art. no. 53-1084)
- Clamp collet M16 (for L) (Art. no. 53-1085)
- Clamp collet M18 (for L) (Art. no. 53-1086)
- Clamp collet M20 (for L) (Art. no. 53-1087)
- Clamp collet M24 (for L) (Art. no. 53-1088)
- Universal coolant fluid RK 12, 5 l canister (Art. no. 54-1206)
|
|
