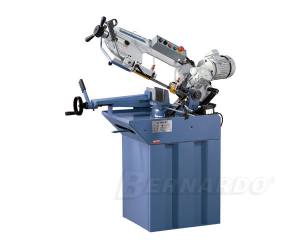

» » » Bernardo HBS 210 horizontal metal bandsaw
 |
| |
| Bernardo HBS 210 horizontal metal bandsaw. |
| |
The low-cost horizontal bandsaw with tiltable sawframe ensure a space-saving work, the sensitive lowering takes place by a hydraulic cylinder with adjustable valve. The application area is predominant at the professional user.
|
Cutting capacity round 90°
|
170 mm
|
|
Cutting capacity flat 90°
|
140 x 210 mm
|
|
Cutting capacity round 45°
|
125 mm
|
|
Cutting capacity flat 45°
|
100 x 125 mm
|
|
Working height
|
890 mm
|
|
Sawblade dimension
|
2080 x 20 x 0,9 mm
|
|
Cutting speeds
|
40 / 80 m/min
|
|
Coolant pump S1 100%
|
50 W
|
|
Motor power output S1 100%
|
0,75 kW
|
|
Motor power input S6 40%
|
1,1 kW
|
|
Voltage
|
400 V
|
|
Machine dimension (L x D x H)
|
1250 x 540 x 1600 mm
|
|
Weight approx.
|
157 kg
|
Technische Spezifikationen
|
Cutting capacity round 90°
|
170 mm
|
|
Cutting capacity flat 90°
|
140 x 210 mm
|
|
Cutting capacity round 45°
|
125 mm
|
|
Cutting capacity flat 45°
|
100 x 125 mm
|
|
Working height
|
890 mm
|
|
Bandsaw blade dimensions
|
2080 x 20 x 0,9 mm
|
|
Cutting speeds
|
40 / 80 m/min
|
|
Coolant pump S1 100%
|
100 W
|
|
Motor power
|
0,75 kW
|
|
Voltage
|
400 V
|
|
Machine dimensions (L x D x H)
|
1250 x 540 x 1600 mm
|
|
Weight approx.
|
157 kg
|
Features
- Optimal adjustment of the blade tension via a manometer
- Stepless adjustable lowering via hydraulic cylinder with adjustable valve
- Automatic shut-down at cutting end
- For cutting of hollow profile and full rivet material, stainless steel, tool steel, ...
- Easy to use, two-step motorized cutting speed
- Bandsaw blade guiding features double ball bearings for optimal blade run
- Stable saw frame, thereby smooth and vibration-free run
- Robust cast iron vice with quick adjustment and material fence
Standard accessories:
- Bandsaw blade
- Material fence
- Manometer for blade tension
- Vice with quick adjustment
- Coolant device
- Hydraulic cylinder
- Motor protection switch
- Automatic shut-down
- Stand
Optional accessories:
- Bandsaw blade BiFlex 2080 x 20 x 0,9 - Vario 8/12 ZpZ (Art.Nr.:47-1345)
- Roller table RB 4 - 1000 (Art.Nr.:07-1461)
- Roller table RB 7 - 2000 (Art.Nr.:07-1462)
- Roller table RB 1000 A with fence (Art.Nr.:07-1505)
- Roller table RB 2000 A with fence (Art.Nr.:07-1510)
- Roller table RB 3000 A with fence (Art.Nr.:07-1515XL)
- Measurement system LS 1 for RB 4 - 1000 (Art.Nr.:07-1466)
- Measurement system LS 2 for RB 7 - 2000 (Art.Nr.:07-1467)
- PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) * (Art.Nr.:07-1465)
- Mounting plate f. RB 4 / 7 / 10 / 13 (Art.Nr.:07-1469)
- Carriage (Art.Nr.:07-1531)
- Universal coolant fluid RK 12, 5 l canister (Art.Nr.:54-1206)
- Stepless adjustable lowering via hydraulic cylinder with adjustable valve
- Automatic shut-down at cutting end
- For cutting of hollow profile and full rivet material, stainless steel, tool steel,....
- Cutting speed via 2-step motor comfortable selectable
- Double ball beed sawblade guiting for optimal blade run
- Stable sawframe, thereby smoot and vibration-free run
- Robust vice out of cast iron with quick adjustment and material fence
Standard accessories:
- Sawblade
- Material fence
- Stand
- Manometer for blade tension
- Vice with quick adjustment
- Coolant system
- Hydraulic cylinder
- Motor protection switch
- Automatic shut-down
|
| |
| |
|
|
