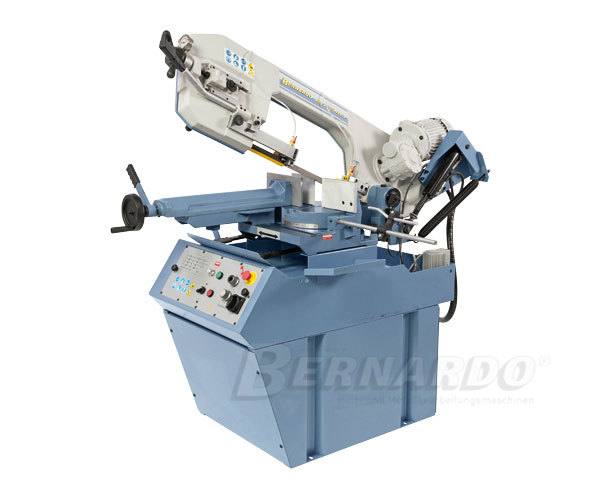

Bernardo horizontal bandsaw MBS 350 DG-VR PRO


6.827,26 EURplus tax excl. Shipping costs



Product No.:
04-1711
Shippingtime:
Weight per unit:
550 kg

Bernardo horizontal bandsaw MBS 350 DG-VR PRO



The model MBS 350 DG-VR PRO is a precise horizontal bandsaw for universal use. The features include the tiltable saw frame for double mitre cutting from -45° to +60°, the turnable vice as well as the stepless cutting speed.





Cutting capacity round / square 90°

270 mm / 260 x 260 mm

Cutting capacity flat 90°

350 x 240 mm

Cutting capacity round / square 45° R

230 mm / 210 x 210 mm

Cutting capacity flat 45° R

230 x 150 mm

Cutting capacity round / square 45° L

200 mm / 170 x 170 mm

Cutting capacity flat 45° L

200 x 140 mm

Cutting capacity round / square 60° R

140 mm / 140 x 140 mm

Working height

975 mm

Bandsaw blade dimensions

2925 x 27 x 0,9 mm

Cutting speeds

20 - 80 m/min

Coolant pump S1 100%

100 W

Motor power output S1 100%

1,9 kW

Motor power input S6 40%

2,8 kW

Voltage

400 V

Machine dimensions (L x D x H)

2000 x 1300 x 2000 mm

Weight approx.

550 kg

  • Professional bandsaw for locksmith´s shops, engine construction, tool shops, ...
  • Torsion-free, strong spheroidal cast iron saw frame
  • Stepless cutting speed allows for ideal adjustment to each workpiece (20 - 80 m/min)
  • The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
  • Bandsaw blade guides features roller guides and carbide tips for ideal blade run
  • Robust construction ensures smooth, vibration-free run
  • Stepless lowering of saw frame via hydraulic cylinder
  • Gear unit complete with hardened, polished worm shaft and bronze worm gear
  • Robust cast iron vice with material fence, ideal for serial section
  • Automatic shut-down at cutting end
  • For mitre cutting the saw frame tilts 45° to the left and 60° to the right



Standard accessories:

  • Bandsaw blade
  • Material fence
  • Stand
  • Manometer for blade tension
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down



Optional accessories:

  • Bandsaw blade BiFlex 2925  x 27 x 0,9 - Vario 4/6 TpI (Art.Nr.:47-1037)
  • Roller table RB 4 - 1000 (Art.Nr.:07-1461)
  • Roller table RB 7 - 2000 (Art.Nr.:07-1462)
  • Roller table RB 10 - 3000 (Art.Nr.:07-1463)
  • Roller table RB 13 - 4000 (Art.Nr.:07-1464XL)
  • Roller table RB 1000 A  with fence (Art.Nr.:07-1505)
  • Roller table RB 2000 A  with fence (Art.Nr.:07-1510)
  • Roller table RB 3000 A  with fence (Art.Nr.:07-1515XL)
  • Measurement system LS 1 for RB 4 - 1000 (Art.Nr.:07-1466)
  • Measurement system LS 2 for RB 7 - 2000 (Art.Nr.:07-1467)
  • Measurement system LS 3 for RB 10 - 3000 (Art.Nr.:07-1468XL)
  • PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) * (Art.Nr.:07-1465)
  • Mounting plate f. RB 4 / 7 / 10 / 13 (Art.Nr.:07-1469)
  • Bernardo Cutting fluid CUT, 1:30 dilutable, 5 l canister (Art.Nr.:54-1201)
