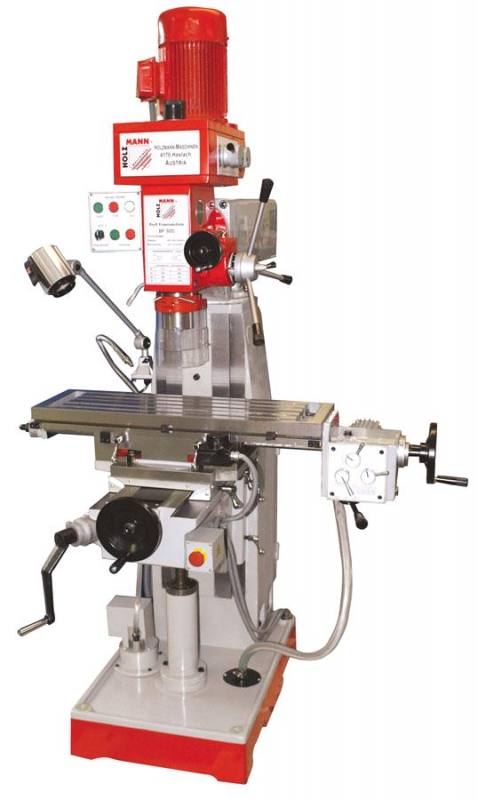

Heavy duty milling machine BF 500 Holzmann

 Heavy duty milling machine BF 500 Holzmann

heavy and vibration absorbing cast iron machine
solid and pivotable (+90° -90°) vertical gear driven milling head
Oil bath gear with ground and hardened gear wheels
CW-CCW run standard
quill infeed via three handle wheel and precision wheel with depth scale
heavy and large cross table with 14mm T-nuts to fix e.g. a vice
automatic gear driven feeding of X-axis
automatic and adjustable limit stops of the X-axis.
swallowtail guides of the table adjustable via V-ledge
max. tapping size M16
adjustable limit stops of all axes
cooling system and halogen lamp included in delivery

included in delivery: cooling system, chuck set 8pcs (4,5,6,8,10,14,12,16mm), drill chuck 1-16mm (B18), 1xMK2 – 1xMK3 – 1xB18 retainer, professional vice jaw width 160mm, halogen lamp
