» » » Metallkraft Semi-automatic metal belt saw BMBS 240 x 280 HA-DG
Metallkraft Semi-automatic metal belt saw BMBS 240 x 280 HA-DG
|

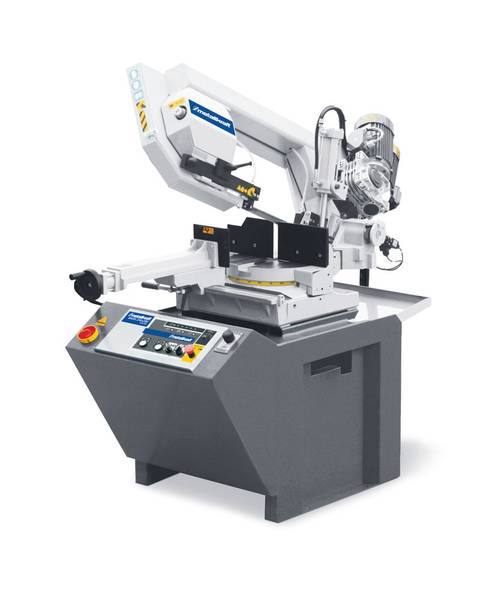

| BMBS 240 x 280 HA-DG shown |
| |
| BMBS 240 x 280 HA-DG - Hydraulic metal belt saw with arc for mitre cuts up to -60° bis +45° |
| |
| |
|
· To saw e.g. stainless steel, tool steel, hollow sections and full materials
· Extremely solid and robust structure
· With hydraulic controlled sawing functions
· Engine drive with low-maintenance oil-lubricated worm gear
· With robust three-phase A.C. motor
· Motor equipped with overload protection
· Saw belt guide with adjustable cemented carbide tips
· With STOP function - sawing process can be interrupted at any time by pressing a switch. The belt is running free and the arm travels back to the zero position without opening the vice nor switching off the machine
· Turn table mounted on bearings
· With cleaning brush for a optimum cleaning and maintenance of the saw belt
· With hydraulic quick-action vice
|
| |
 |
| |
.jpg) |
| |
| Modell |
BMBS 240 x 280 HA-DG |
| Artikel-Nr. |
369 0063 |
| |
| |
| Technische Daten |
| Motorleistung 400 V /50 Hz |
1,4 / 2,2 kW |
| Geschwindigkeitsstufen |
2 |
| Sägebandgeschwindigkeiten |
35/70 m/min. |
| Sägebandabmessungen |
2980 x 27 x 0,9 mm |
| Stellfläche (LxBxH) |
1800 x 1050 x 1950 mm |
| Tischhöhe Materialzufuhr |
940 mm |
| Gewicht |
550 kg |
| max. Vorschublänge bei 1x Vorschub |
- |
| min. Restwerkstücklänge CNC-Betrieb |
- |
| min.Restwerkstücklänge man.Betrieb |
- |
| Schnittkapazitäten |
|
| 0° - Rundrohrmaterial |
240 mm |
| 0° Rundrohr-Vollmaterial |
150 mm |
| 0° - Vierkantmaterial liegend |
280 x 240 mm |
| 0° - Vierkantmaterial stehend |
280 x 240 mm |
| -45° - Rundrohrmaterial |
180 mm |
| -45° - Rundrohr-Vollmaterial |
110 mm |
| -45° - Vierkantmaterial liegend |
180 x 160 mm |
| -45° - Vierkantmaterial stehend |
170 x 240 mm |
| -60° - Rundrohrmaterial |
110 mm |
| -60° - Rundrohr-Vollmaterial |
80 mm |
| -60° - Vierkantmaterial liegend |
110 x 120 mm |
| -60° - Vierkantmaterial stehend |
100 x 240 mm |
| +45° - Rundrohrmaterial |
190 mm |
| +45° - Rundrohr-Vollmaterial |
110 mm |
| +45° - Vierkantmaterial liegend |
190 x 170 mm |
| +45° - Vierkantmaterial stehend |
150 x 240 mm |
| Bündelgröße - Rundrohrmaterial |
X |
| Bündelgröße - Rundrohr-Vollmaterial |
X |
| Bündelgröße - Vierkantmaterial liegend |
280 x 160 mm |
| Bündelgröße - Vierkantmaterial stehend |
280 x 160 mm |
|
| |
| |
| |
| |
| |
| |
