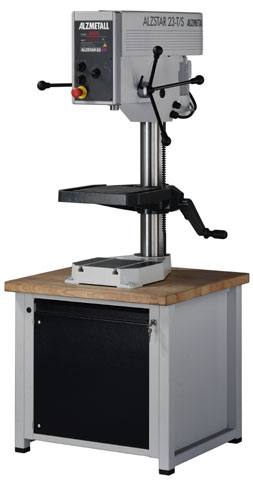

Bench Drilling Machine ALZSTAR 23

Product No.:
Alzstar 23 Tisch
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
155 kg
5.539,97 EURplus 19 % tax, excl. Shipping costs


ALZSTAR Series

The Start-Up Range for low budgets



Drilling Capacity in Steel E 335 (ST 60) 23 mm

Tapping Performance
in Steel E 335 ST 60 M 14
in Cast-iron GG 20 M 16

Tool Taper (short spindle) MT 2
Z-Travel of spindle 100 mm
Distance Spindle to Column 250 mm
Column Diameter 90 mm
Table Clamping area 370 x 300 mm
T-Slots, number x width x distance 2 x 14 x 160 mm
Feed manual
Net weight approx. 155 kg
Drive System infinitely variable
Motor 750 / 1500 Rpm
Performance 0,6 / 0,95 kW
Spindle Rpm range 225-4300


Standard Equipment:

    Self-Locking Mushroom Button for Emergency-Off
    Reverse Switch for Tapping
    Overload Circuit-Breaker
    Infinitely variable speed drive
    Digital RPM Read-out
    Protection Class IP 54
    Connecting plug mounted
    Electrically secured spindle protection
    Lacquer: DD-structured grey RAL 7035, anthracite RAL 7016, alu RAL 9006
