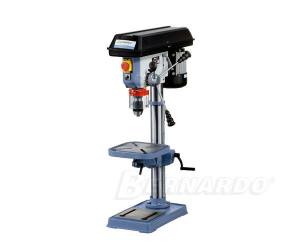

Bernardo TBM 20 - 230 V table drilling machine


403,26 EURplus tax excl. Shipping costs



Product No.:
01-1035
EAN:
9009468000066
Shippingtime:
Weight per unit:
56 kg
Bernardo TBM 20 Tischbohrmaschine

Bernardo TBM 20 - 230 V table drilling machine

The price-worthy bench drilling machines with v-belt drive are optionally available with a drilling capacity of 14, 16 or 20 mm, which makes them the ideal solution for hobbyists and training workshops.

Drilling capacity max.:                                                      20 mm
Drill chuck:                                                                         1 - 16 mm / B 16
Morse taper:                                                                       MT 2
Speeds:                                                                              (4) 210 - 2220 rpm
Throat:                                                                                 170 mm
Table tiltable:                                                                     -45° to +45°
Distance spindle / table max.:                                       460 mm
Distance spindle / base plate:                                      645 mm
Spindle stroke:                                                                 80 mm
Column diam.:                                                                 70 mm
Table size:                                                                        265 x 265 mm
Base plate:                                                                       205 x 205 mm
Motor power output S1 100%:                                      0,55 kW / 230 or 400 V
Motor power input S6 40%:                                           0,80 kW / 230 V bzw. 400 V
Machine dimension (W x D x H):                                  380 x 610 x 1020 mm
Weight approx.:                                                                56 kg

  • Aluminium belt pulleys guarantee a smooth run
  • Big dimensioned drilling table with diagonally directed T-slots
  • Powerful aluminium motor according to IP 54
  • Switch for right and left turning (400 V models)
  • Table tiltable (±45°), height adjustment via gear rack
  • Quality bearings ensure a true running accuracy (≤ 0,03 mm) in the centre sleeve
  • Serially equipped with T-slots in the grinded base plate
  • Precision keyless drill chuck included in standard equipment
  • Ergonomically arranged handles for comfortable work


Standard accessories:

  • Keyless drill chuck 1 - 16mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Protective cover
