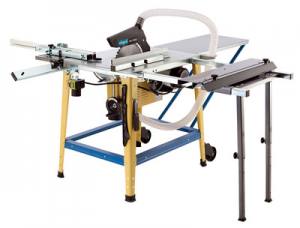

Scheppach Circular sawbench tku 4000 230V/50 Hz


831,12 EURplus tax excl. Shipping costs



Product No.:
SP 5278 0901
Shippingtime:
Weight per unit:
60 kg

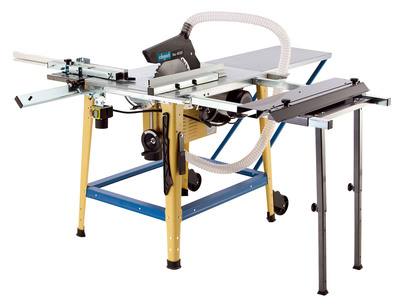

NEW! - Circular sawbench tku 4000

The circular sawbench is the “heart” of a well-equipped joiner’s workshop

Portable, versatile, outstanding performance, rigid and accurate. These sawbenches represent amazing value for money. Their generous specification fulfills the need for ripping, crosscutting, angle and compound angle cuts. If you need to complete multiple operations in your woodworking projects, you should not work alone. You need the tku 4000 at your side. The new scheppach tku 4000 is ideal for sawing hard and soft timbers, panels and all man made wood-like materials. The perfect low cost option for the workshop or on site.

Unmatched in specification & performance – the scheppach tku 4000 12” site sawbench.
Massive 102 mm (4”) depth of cut; 4,000 rpm cutting speed offers tear free cuts; adjustable from -2° to +48° for all bevel and compound angle cuts; belt driven system.

Do not settle for the inadequate one handled rise & fall plus tilt designs found on cheaper machines. The scheppach tku 4000 mirrors the design of professional sawbenches and is equipped with two separate control handles.

Getting the most of your tku
A host of useful optional attachments can be added if required. The most popular is the sliding table carriage. Perfect for accurate crosscuts and mitres. Fixed left and right angle settings are provided and the fence is equipped with an adjustable turnover stop for repeat cuts. This attachment is available in two sizes.

There is also a folding side extension for cutting panels. And if your machine is regularly on the move, the wheel kit makes light work of transporting this machine. Of particular importance to the discerning buyer is the rip fence which can be instantly locked and released for appropriate positioning. When locked it is totally rigid. The sawbench comes with the saw/motor unit, pre-factory assembled, leaving minimal assembly to the final user.

Technical data

L/W/H mm

1,590/590/1,200

Table size mm

595 x 795

Sliding carriage mm

800 x 400

- Sawblade Ø mm/teeth

315/20

Height adjustment mm

0-102

Tilting range °

-2 to +45

Rpm

4,000

Cutting speed m/sec

66

Angle fence °

0 to 45

Suction connector Ø mm

50 and 100

Weight approx. kg

60



Cutting details

Cutting width or depth with



- ripping fende mm

345

- table width extn. mm

1,050

- angle fence mm

220

- sliding carriage professional mm

750

Cutting depth at 90° mm

102

Cutting depth at 45° mm

70



Motor



230V/50 Hz

Input kW (HP)

2.2 (3.0)

Output kW (HP)

1.6 (2.2)

Rpm

2,800

Order No.

5278 0901
