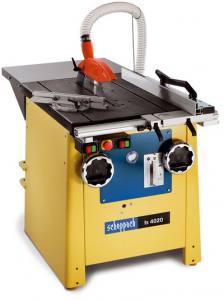

» Scheppach Circular sawbench ts 4020 with motorized scoring attachment 4.0 kW 380-420V/ 50 Hz
Circular sawbench ts 4020 with motorized scoring attachment
Professional and precise working with the pre-scoring attachment.
The ts 4020 also comes in a ”vr” option which has a factory installed motorized pre-scoring unit fitted for those needing the ultimate cut in surface coated sheet material. Micro adjusters to the rip fence and flip stop ensure that all fences accurate to 0.1 mm, guaranteed.
The width of the pre-scoring sawblade can be easily set in steps of 1/10th of a millimetre from above, so it can be matched to the main sawblade selected. In addition, both sawblades can be inclined together up to 45°.
The 315 mm sawblade fitted as standard, can also be used together with the pre-scoring attachment – which does away with the tiresome replacement of the sawblade with pre-scoring work. When not in use, the pre-scoring unit can be easily folded down underneath the table top.
Technical data
L/W/H mm
|
1,350/760/1,110
|
Table size mm
|
805 x 680
|
Table height mm
|
850
|
Sliding carriage mm
|
440 x 670
|
Sawblade Ø mm/teeth
|
315/48
|
Height adjustment mm
|
0 - 110
|
Tilting range °
|
0 - 45
|
Speed rpm
|
4,000
|
Cutting speed m/sec
|
66
|
Ripping fence length mm
|
800
|
Angle fence °
|
2 x 60
|
Suction connector Ø mm
|
100
|
Weight approx. kg
|
215
|
Cutting details
Cutting width or depth with
|
|
ripping fence mm
|
390
|
table width extn. mm
|
1100
|
angle fence mm
|
260
|
sliding carriage mm
|
800/1,400
|
Cutting depth at 90°/45° mm
|
110/77
|
Technical data scorint unit
Motor V/Hz
|
220-240V/ 50 Hz
|
Input kW (HP)
|
0.8 (1.1)
|
Scoring sawblade ø mm
|
120 x 20
|
Adjustable width mm
|
2.8 - 3.6
|
Rpm
|
8,000
|
Main sawblade ø max. mm
|
315
|
Cutting height max. mm
|
4
|
Motor
|
380-420V/ 50 Hz
|
Input kW (HP)
|
4.0 (5.4)
|
Output kW (HP)
|
2.9 (3.9)
|
Rpm
|
2,740
|
Order No.
|
5463 0905
|
