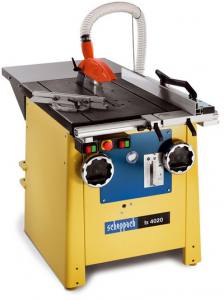

Scheppach Circular sawbench ts 4020 with motorized scoring attachment 4.8 kW 380-420V/ 50 Hz


3.765,54 EURplus tax excl. Shipping costs



Product No.:
SP 5463 0906
Shippingtime:
Weight per unit:
215 kg

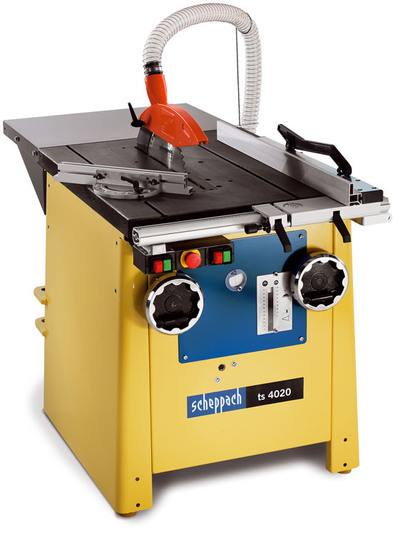

Circular sawbench ts 4020 with motorized scoring attachment

Professional and precise working with the pre-scoring attachment.

The ts 4020 also comes in a ”vr” option which has a factory installed motorized pre-scoring unit fitted for those needing the ultimate cut in surface coated sheet material. Micro adjusters to the rip fence and flip stop ensure that all fences accurate to 0.1 mm, guaranteed.

The width of the pre-scoring sawblade can be easily set in steps of 1/10th of a millimetre from above, so it can be matched to the main sawblade selected. In addition, both sawblades can be inclined together up to 45°.

The 315 mm sawblade fitted as standard, can also be used together with the pre-scoring attachment – which does away with the tiresome replacement of the sawblade with pre-scoring work. When not in use, the pre-scoring unit can be easily folded down underneath the table top.

Technical data

L/W/H mm

1,350/760/1,110

Table size mm

805 x 680

Table height mm

850

Sliding carriage mm

440 x 670

Sawblade Ø mm/teeth

315/48

Height adjustment mm

0 - 110

Tilting range °

0 - 45

Speed rpm

4,000

Cutting speed m/sec

66

Ripping fence length mm

800

Angle fence °

2 x 60

Suction connector Ø mm

100

Weight approx. kg

215



Cutting details

Cutting width or depth with



  ripping fence mm

390

  table width extn. mm

1100

  angle fence mm

260

  sliding carriage mm

800/1,400

Cutting depth at 90°/45° mm

110/77



Technical data scorint unit

Motor V/Hz

220-240V/ 50 Hz

Input kW (HP)

0.8 (1.1)

Scoring sawblade ø mm

120 x 20

Adjustable width mm

2.8 - 3.6

Rpm

8,000

Main sawblade ø max. mm

315

Cutting height max. mm

4




Motor



380-420V/   50 Hz

Input kW (HP)

4.8 (6.5)

Output kW (HP)

4.0 (5.4)

Rpm

2,780

Order No.

5463 0906
