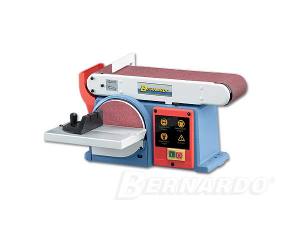

Bernardo BDSM 150 Belt and disc sander

The BDSM 150 N belt and disc sanding machine is a versatile model for deburring and sanding of fl at surfaces or contours. For model makers and craftsmen this machine is truely the ideal device no matter what shape or material.



Sanding belt	915 x 100 mm
Belt sanding table	305 x 120 mm
Belt sanding table tiltable	0° to 90°
Sanding disc diam.	150 mm
Sanding disc table	225 x 155 mm
Sanding disc table tiltable	0° to 45°
Belt seped	7,5 m/sec.
Dust extractor outlet	60 mm
No load speed	2850 rpm
Motor power output S1 100%	0,37 kW
Motor power input S6 40%	0,52 kW
Voltage	230 V
Machine dimension (W x D x H)	460 x 400 x 300 mm
Weight approx.	19 kg

• Complete with integrated dust port to connect a dust collector unit
• Combination of belt and disc sander allows for nearly all sanding operations in your workshop to be completed
• Suitable for sanding of soft- and hardwood, as well as plastics, non-ferrous metals and alike
• Solid and torsion-free machine housing, made from grey cast-iron
• Quick clamping device allows for easy, straightforward change of sanding belt
• Continuous plane sanding surface allows for sanding of longer workpieces
• Machine is equipped with a powerful, maintenance-free induction motor
• Sanding disc and belt are part of standard equipment
• Sanding belt can be used horizontally and vertically
• Mitre fence comes standard
• Sanding table can be tilted from 0º to 45º



Standard accessories:

• Sanding belt 915 x 100 mm - grit 80
• Sanding disc diam. 150 mm - grit 80
• Hook and loop fastener diam. 150 mm
• Mitre fence
• Fence at belt sanding table
• Dust extraction outlet



Optional accessories:

• Sanding disc diam. 150 mm - grit 60 (10 pcs.), Hook and loop fastener (Art. no.: 11-2121A)
• Sanding disc diam. 150 mm - grit 80 (10 pcs.), Hook and loop fastener (Art. no.: 11-2122A)
• Sanding disc diam. 150 mm - grit 100 (10 pcs.), Hook and loop fastener (Art. no.: 11-2120A)
• Sanding disc diam. 150 mm - grit 120 (10 pcs.), Hook and loop fastener (Art. no.: 11-2123A)
• Sanding disc diam. 150 mm - grit 150 (10 pcs.), Hook and loop fastener (Art. no.: 11-2124A)
• Sanding disc - set Hook and loop fastener diam. 150 mm - grit 60 / 80 / 100 / 120 / 150 (each 2 pcs.) (Art. no.: 11-2124B)
• Hook and loop fastener diam. 150 mm (Art. no.: 11-2132)
• Sanding belt 915 x 100 mm - grit 60 (5 pcs.) (Art. no.: 11-2111)
• Sanding belt 915 x 100 mm - grit 80 (5 pcs.) (Art. no.: 11-2112)
• Sanding belt 915 x 100 mm - grit 100 (5 pcs.) (Art. no.: 11-2115)
• Sanding belt 915 x 100 mm - grit 120 (5 pcs.) (Art. no.: 11-2113)
• Sanding belt 915 x 100 mm - grit 150 (5 pcs.) (Art. no.: 11-2114)
• Sanding belt - set 915 x 100 mm - grit 60 / 80 / 100 / 120 / 150 (each 2 pcs (Art. no.: 11-2115A)
• Belt cleaner (Art. no.: 11-2175)
