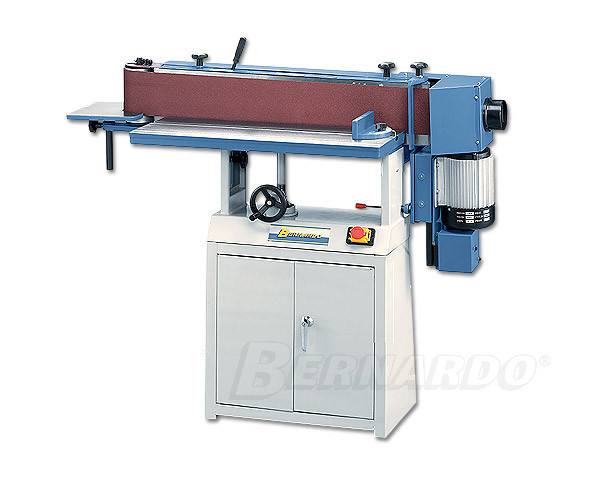

Bernardo HV 80 OSZI Edge sander

The high performance and versatile BERNARDO edge sanders HV 80 are ideal for sanding of wood, glass and plastic. By using fabric tapes it is possible to sand metal. By stepless tilting of the horizontal flank side the operation possibilities are increased.

Working table	840 x 300 mm
Table height adjustment	80 mm
Belt length	2630 mm
Belt width	150 mm
Sanding table	960 x 160 mm
Tilting of sanding unit	90° - 45°
Belt speed	16 m/sec.
Supporting table	300 x 250 mm
Dust hood diam.	100 mm
Roller diam.	110 mm
Motor power	1,1 kW (1,5 HP) / 400 V
Weight approx.	148 kg

• Height adjustment table for sanding curved workpieces
• Table height adjustment with handwheel
• Tiltable sanding unit from 90° up to 45°
• Tool cabinet with storage equipped in the standard accessories
• Spring-mounted tensioning device for consist belt tension
• Due to the oscillation, an optimal use of the sanding belt is warranted
• Serially with mitre fence adjustable from -45° to +45°
• Easy and quick changing of the sanding belt using the clamping lever
