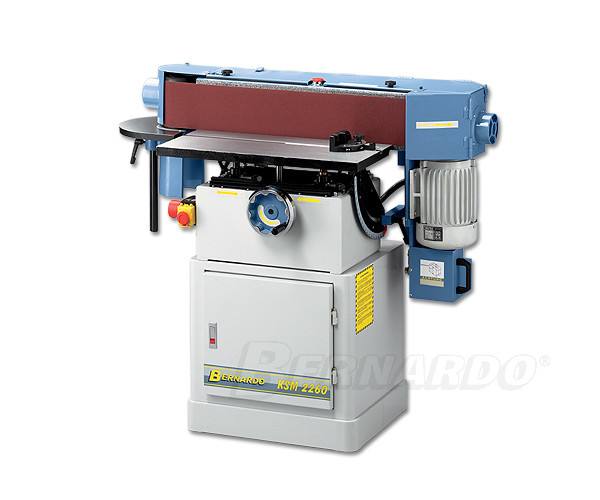

» » » Bernardo KSM 2260 Edge sander
 |
| |
Bernardo KSM 2260 Edge sander
|
| |
The edge sanding machine KSM 2260 is serially equipped with a horizontal and vertical tiltable sanding aggregate, making this machine useable for multifunctional works. The working area for this machine is mainly by the professional do-it-yourselfer.
| Work table |
680 x 300 mm |
| Table height adjustment |
100 mm |
| Belt length |
2270 mm |
| Belt width |
150 mm |
| Sanding table |
770 x 170 mm |
| Tilting of sanding unit |
90° - 0° |
| Belt speed |
16 m/sec. |
| Supporting table |
290 x 265 mm |
| Oscillation stroke |
20 mm |
| Speed |
1420 rpm |
| Dust hood diam. |
100 mm |
| Motor power |
1,5 kW (2,0 HP) / 400 V |
| Space needed |
1320 x 700 x 1120 mm |
| Weight approx. |
180 kg |
- Serially with mechanic oszillating sanding aggregate for an optimal use of the belt width
- Serially with three changeable abrasive sleeves (38, 50 and 76 mm)
- Height adjustable supporting table with 4 elements for the abrasive sleeves
- Generous dimensioned working table with integrated T-slot for the mitre fence
- Additional emergency stop button on the sanding aggregate for heightened safety
- Comfortable height adjustment of the working table using a hand wheel
- Belt tension with tightening springs for automatic compensation of length tolerances
- Height adjustable working table can be moved forward and backward additionally
- Stepless tiltable sanding aggregate for sanding horizontal and vertical
- Both-sided extraction socket 100 mm for an optimal dust extraction
- Serially with rubber coated sanding roller for internal and external grinding
- Easy changing of the sanding belt using the quick clamping lever
- Graphite facing on the sanding table for easier slide of the sanding belt
|
|
|
|
|
|
|
| |
