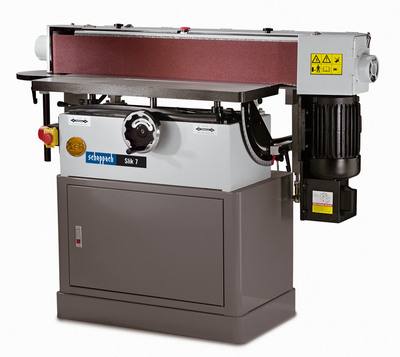

» Scheppach Oscillating sander Slic 7 400V
Die leistungsstarke slik 7 präsentiert sich im modernen Design.
Built for those that demand the biggest and the best tool for their shop, this edge sander has production shop quality. Well suited to any small to medium sized workshop or wood preparation area, it is fully guarded and exceptionally easy to use. You'll agree – this Oscillating Edge Sander is awesome!
Specifications
• Belt length: 2,750 mm
• Belt width: 150 mm
• Sanding bed 1,000 x 170 mm
• Tilting of sanding unit 90° – 0°
• Belt speed 16 m/sec.
• Work table 900 x 305 mm
• Supporting table 290 x 265 mm
• Oscillation stroke 20 mm
• Table height adjustment 100 mm
• Speed 1,420 rpm
• Dust hood diam. 100 mm
Additional Features
• Oscillating sanding belt ensures maximum sanding performance and leaving a perfectly smooth surface
• Large working table area complete with integrated T-groove for mitre fence
• Two emergency stops for increased safety during operation
• Work table has both height and latteral adjustment
• Three exchangeable sanding sleeves of 38, 50 and 76 mm included as part of the standard equipment
• Quick-action release lever makes for easy replacement of the sanding belt
• Unique belt tensioning system that automatically compensates for any variance in belt lengths
• Height-adjustable add-on table with four inserts for the sanding sleeves
• Sanding belt position is infinitely variable between 90° vertical to 0° horizantal
• Handwheel for easy table height adjustment of the working table
• Smooth action: Rubber-coated sanding roller for inner and outer sanding (Standard equipment)
Order Details
Oscillating sander Slik 7
400V (2.85 kW / 3.9 H.P)
Order No. 8105 0902
|
|
Technische Daten
Tischgröße b x t mm
|
900 x 305
|
Tischhöhenverstellung mm
|
110
|
Schleifbandgröße mm
|
2740 x 150
|
Bandgeschwindigkeit m/sec.
|
16
|
Schwenkbereich °
|
0 - 90
|
Schleifhülsen-ø
|
40/52/78x115
|
Absaugstutzen-ø
|
100
|
Gewicht ca. kg
|
225
|
Motorausrüstung
|
400 V/50 Hz
|
Aufnahmeleistung kW
|
2,85
|
Drehzahl 1/min
|
2800
|
Bestell-Nr.
|
8105 0902
|
Scheppach © oszillierende Bandschleifmaschine Slik 7
|
|
|
|
