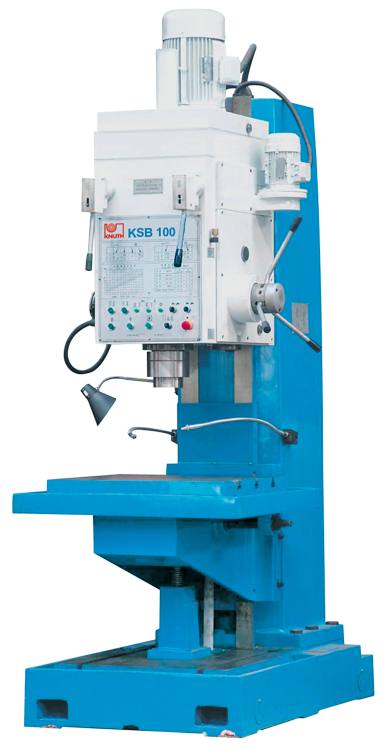

Knuth Box-Column Drill Press KSB 100
|
| |
|
Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks
- box-column design provides high load capacity, and is torsion-proof and rigid
- table and drill head can be moved individually for an optimum machining height
- 9-step feed and speed gears, with oil-bath lubrication
- high torque across the entire speed range
- thread-cutting unit automatically reverses upon reaching the preset depth
|
| |
Specifications - KSB 100 - Box-Column Drill Press
|
| drilling capacity, steel |
100 mm |
| working area |
|
| table set up area |
760x650 mm |
| T-slots, width |
22 mm |
| number of T-slots |
3 Pieces |
| quill stroke |
310 mm |
| table stroke |
300 mm |
| feed Z-axis |
(6) 0,1 - 0,71 mm/R |
| feed force, axial (max.) |
45 kN |
| spindle nose-to-table distance (max.) |
850 mm |
| throat |
480 mm |
| vertical head travel |
300 mm |
| headstock |
|
| spindle speed |
(6) 26 - 320 rpm |
| spindle mount |
MK 6 |
| headstock torque |
1150 Nm |
| drive capacity |
|
| motor rating main drive |
7,5 kW |
| motor rating coolant pump |
0,075 kW |
| measures and weights |
|
| flow rate |
25 l/min |
| overall dimensions |
1465x970x3170 mm |
| weight |
3500 kg |
|
| |
Standard equipment - KSB 100 - Box-Column Drill Press
coolant system, tapping unit, work lamp, operating tools, operator manual
|
| |
|
Accessories / Tools - KSB 100 - Box-Column Drill Press
| Mounting Shaft MT 4 |
| Lathe Bore Head with Boring Bar Set 75 mm 12 pcs. |
| Coolant Concentrate 5 Ltr. |
| MS 200 |
| Reduction Sleeve MT 5/4 |
| ADA / MT 4 |
| Accessory-Set MT 4 8-pc. |
|
| |
