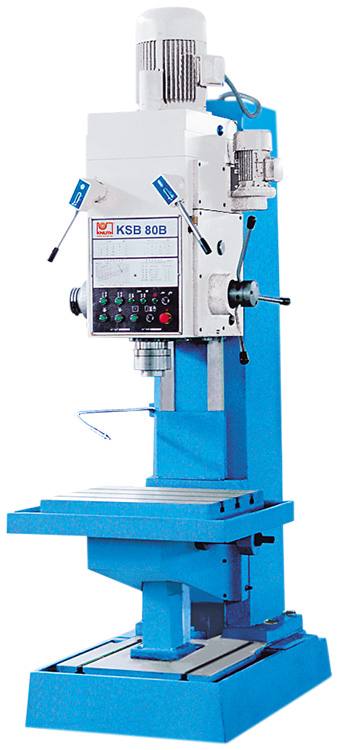

Knuth Box-Column Drill Press KSB 80B

Knuth Box-Column Drill Press KSB 80B

Product No.:
101696
Price on requestNo tax ref. Home Paragraph 19 of the UStG,




Knuth Box-Column Drill Press KSB 80B


Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks

  • box-column design provides high load capacity, and is torsion-proof and rigid
  • table and drill head can be moved individually for an optimum machining height
  • 9-step feed and speed gears, with oil-bath lubrication
  • high torque across the entire speed range
  • thread-cutting unit automatically reverses upon reaching the preset depth


Specifications - KSB 80B - Box-Column Drill Press
drilling capacity, steel 80 mm
working area
table set up area 650x550 mm
T-slots, width 22 mm
number of T-slots 3 Pieces
quill stroke 250 mm
table stroke 300 mm
feed Z-axis (6) 0,1 - 0,78 mm/R
feed force, axial (max.) 30 kN
spindle nose-to-table distance (max.) 810 mm
throat 375 mm
vertical head travel 260 mm
headstock
spindle speed (9) 40 - 570 rpm
headstock torque 800 Nm
spindle taper MT 6
drive capacity
motor rating headstock 5,5 kW
motor rating coolant pump 0,09 kW
measures and weights
flow rate 25 l/min
overall dimensions 965x1452x2787 mm
weight 2500 kg


Standard equipment - KSB 80B - Box-Column Drill Press

coolant system, tapping unit, work lamp, operating tools, operator manual


Accessories / Tools - KSB 80BB - Box-Column Drill Press

Mounting Shaft MT 4
Lathe Bore Head with Boring Bar Set 75 mm 12 pcs.
Coolant Concentrate 5 Ltr.
MS 200
Reduction Sleeve MT 5/4
ADA / MT 4
Accessory-Set MT 4 8-pc.
