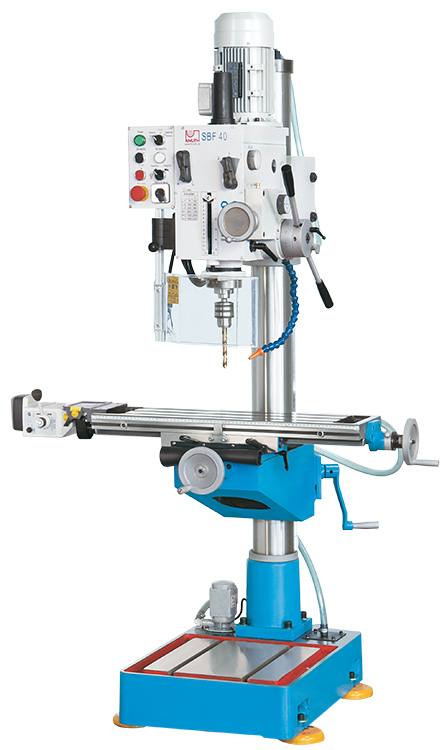

Knuth Column Drill Press 101573 with Milling Function

Universal Skill Package for the Shop Floor - Drilling, Thread cutting, and Milling

Drilling and Milling - a true added value for a low price

compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine's high-quality spindle bearing can withstand higher loads for the long term
manual drill feed can be switched to high-precision feed via a hand-wheel
Controllable automatic feed with 3 gear steps
adjustable height of gear head and table
table guides are adjustable with high precision via taper gibs
gear head swivels to both sides
cutter mounts are secured by an M16 drawbar
tapping feature
integrated coolant system

drilling capacity, St 37	40 mm
tapping capacity, steel	(ST 37) M16
working area
travel X-axis	500 mm
travel Y-axis	190 mm
travel Z1-axis	580 mm
travel Z2-axis	580 mm
table set up area	730x210 mm
table load capacity	100 kg
T-slot table (qty x width x spacing)	3x14x63 mm
T-slot foot (qty x width x spacing)	2x14x200 mm
quill stroke	120 mm
spindle nose-to-table surface distance	600 mm
spindle nose-to-foot distance	1180 mm
throat	278 mm
column diameter	115 mm
head swivel range	± 45 °
work feed	0 - 420 mm/min
rapid feed	600 mm/min
headstock
speed range	(12) 75 - 3200 rpm
spindle mount	MK 4 / MT 4
drive capacity
motor rating main drive (cont./30 min)	1,1/1,5 kW / 1,5/2 Hp
motor rating coolant pump	0,04 kW
measures and weights
overall dimensions	830x760x1850 mm
weight	390 kg
