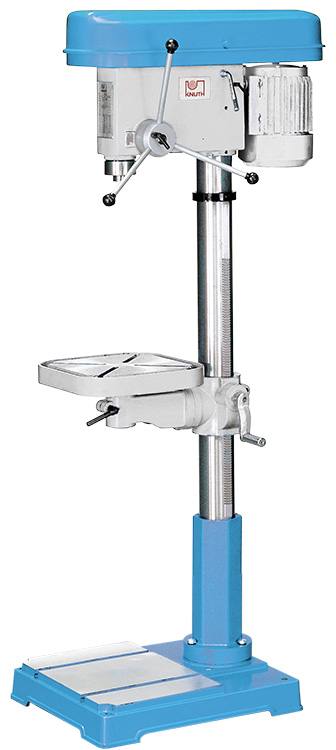

Knuth Industrial Drill Press KTB 32
|
| |
|
Industrial Drill Presses with a rigid, heavy-duty design for industrial and workshop application
- thick-walled column and heavy-duty components ensure accuracy, safety and stability even under maximum loads
- table movement via hand-crank and gear rack
- table swivels at 3 points
- large, dynamically balanced pulley ensures vibration-free operation
- quill retracts through an adjustable return spring
- quill stroke is limited through adjustable stop
- machined base with fixture slots
Specifications - KTB 32 - Industrial Drill Press
| drilling capacity |
32 mm |
| working area |
|
| table dimensions |
350x350 mm |
| quill stroke |
125 mm |
| foot set up area (length x width) |
550x480 mm |
| spindle nose-to-table distance |
740 mm |
| spindle nose-to-foot distance |
1280 mm |
| chuck diameter |
16 mm |
| throat |
230 mm |
| column diameter |
85 mm |
| headstock |
|
| spindle speed |
(9) 190 - 1850 rpm |
| spindle mount |
MK 3 / MT 3 |
| drive capacity |
|
| motor rating main drive |
1,5 kW |
| supply voltage |
400 V |
| measures and weights |
|
| height |
1780 mm |
| weight |
140 kg |
Standard equipment - KTB 32 - Industrial Drill Press
tool-holder bits and chuck
Accessories / Tools - KTB 32 - Industrial Drill Press
| Tapping Attachment M2 - M7 (MT2 + MT3) |
| Compound Sliding Tables 230x145 |
| Coolant System |
| Coolant Concentrate 5 Ltr. |
| MS 100 |
| Power Worker Metal Cutter |
| PB 100 |
| PB 80 |
| De Luxe Clamping Tool Set 14/M12 |
| De Luxe Clamping Tool Set 16/M14 |
| HSS Drill MT 1/2 |
| Accessory-Set MT 3 7-pc. |
|
| |
| |
| |
