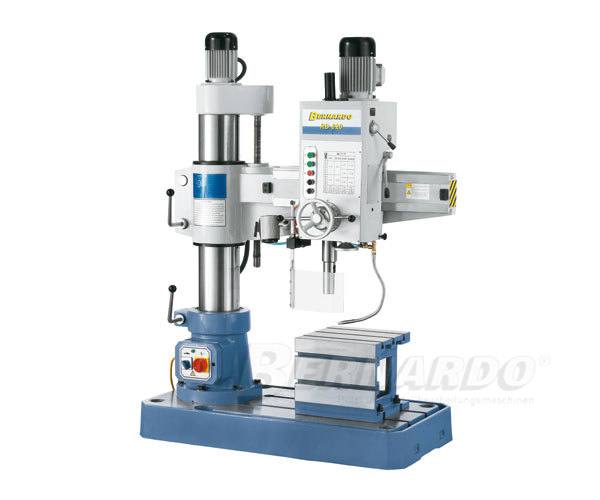

Bernardo radial drilling machineRD 820 x 32

RD 820 x 32 is ideal for complex tasks in drilling, countersinking, reaming and thread cutting.

Drilling capacity max.	32 mm
Thread cutting max.	M 24
Distance spindle to column min./max.	310 - 820 mm
Vertical movement of the support	500 mm
Travel of drill head (horizontally)	510 mm
Spindle stroke	250 mm
Spindle speeds	(6) 75 - 1220 rpm
Morse taper	MT 4
Feed range	0,1/ 0,16/ 0,25 mm/rev.
Distance spindle to box table	16 - 515 mm
Distance spindle to base	370 - 870 mm
Box table (W x D x H)	400 x 400 x 350 mm
Clamping area base	825 x 690 mm
Column diameter	200 mm
Lifting motor	0,75 kW
Motor power	1,5 kW
Machine dimensions (W x D x H)	1470 x 750 x 2100 mm
Weight approx.	1200 kg

Solid construction allows smooth running
Easy adjustment of clamped workpiece
User-friendly control elements on front of machine
Automatic height adjustment of swivel arm
Smooth surface of column guarantees easy movement of arm and spindle head
Wide speed range allows ideal speed settings
Mechanical adjustment of the tilting movement of the support and the adjustment of the headstock
Thread cutting takes place by change of spindle rotation

Standard accessories:

Optional accessories:

Morse taper drill sleeve MT 4/2 (Art.Nr.:24-1024)
Morse taper drill sleeve MT 4/3 (Art.Nr.:24-1025)
Keyless drill chuck with direct mount MT 4, 1 - 16 mm (Art.Nr.:24-1073)
Free machine vise FSV 85 (Art.Nr.:28-1016)
Two-parts milling vise MS 160 (Art.Nr.:28-1020)
Metric size taper shank drills MT 2/3, 17 pcs. - 14,5 -30 mm, set C (Art.Nr.:41-1055)
Machine mount NE 120 (Art.Nr.:53-2011)
Bernardo Drilling fluid DRILL, 1:20 dilutable, 5 l canister (Art.Nr.:54-1200)
