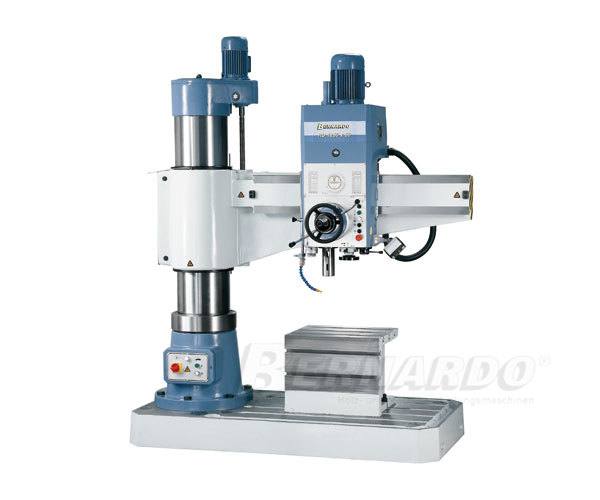

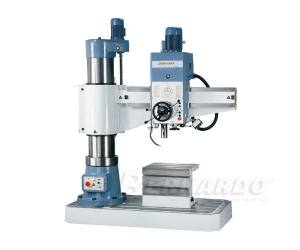

Bernardo RD 2000 x 63 radial drilling machine

The radial drilling machine RD 2000 x 63 feature a highly solid construction. The special bearing guarantees a power-conserving positioning of the support - essential for long working. The adjustment of the drill head as well as the clamping of the support takes place using the handwheel on the front side.

Drilling capacity max.	63 mm
Thread cutting max.	M56
Throat min./max.	450 - 2000 mm
Vertical movement of the extension arm	800 mm
Travel of drill head (horizontally)	1550 mm
Spindle stroke	400 mm
Morse taper	MT 5
Speeds	(16) 20 - 1600 rpm
Feed area	(16) 0,04 - 3,2 mm/r
Distance spindle / box table	0 - 1100 mm
Distance spindle / base	400 - 1600 mm
Clamping surface base	1920 x 1250 mm
Box table (L x W x H)	630 x 800 x 500 mm
Motor power	5,5 kW
Dimensions (L x W x H)	3080 x 1250 x 3205 mm
Weight approx.	7000 kg

• Big dimensioned, grinded base, ideal for working on large workpieces
• Thick-walled, grinded column for increased conductivity of the support

• Ideal for drilling, counterboring, grinding and thread cutting
• Easy adjustment in height of the extension arm via lifting motor
• Extension arm and drill head with hydraulic clamping
• Hardened and grinded gear wheels running in oil bath
• Guideways on the support are hardened and grinded

Standard accessories:

• Box table
• Halogen light
• Cooling pump
• Lifting motor
• Hydraulic motor
