» » » Bernardo OSB Oscillating spindle sander
 |
| |

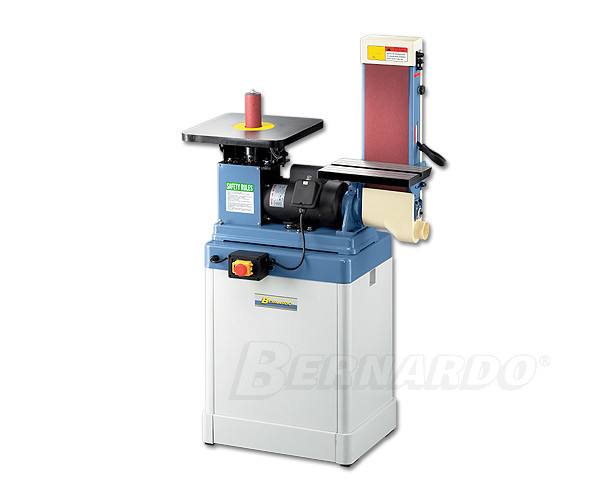

Bernardo OSB Oscillating spindle sander
|
| |
The combined sanding machine OSB consists of an oscillating spindle sanding unit as well as a belt sanding unit and will be used for surface and radial sanding, but also for chamfering.
| Oscillating sanding unit |
|
| Table size |
370 x 370 mm |
| Oscillating stroke |
20 mm |
| Max. sanding height |
110 mm |
| Tiltable table |
0° - 45° |
| Dust extractor outlet |
50 mm |
| Spindle speed |
1420 rpm |
| Belt sanding unit |
|
| Sanding belt |
1220 x 150 mm |
| Belt sanding table |
310 x 150 mm |
| Belt sanding table tiltable |
0° - 45° |
| Working table at sanding belt |
200 x 305 mm |
| Dust extractor outlet |
50 mm |
| Motor power |
0,75 kW (1,0 HP) / 230 V |
| Weight approx. |
74 kg |
- Optimal for chamfering and surface grinding
- Sanding belt useable horizontal and vertical
- Serially with solid stand
- Dust extraction under the table for clean work
- Insert-ring and abrasive sleeves equipped in the standard accessories
- Serially with four abrasive sleeves (6 / 18 / 40 / 53 mm)
|
|
|
|
|
